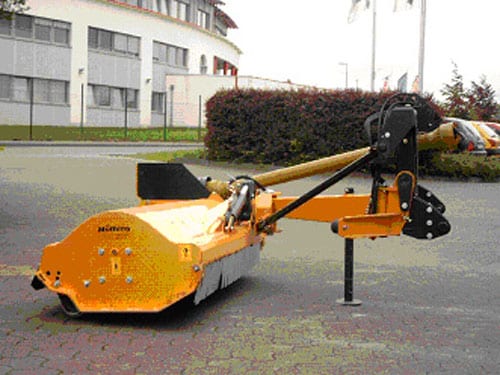

Muthing MU-H/S 90HP

Rear and side multi-purpose flail mowers for tractors up to 90HP

Standard Equipment

• Purposely designed hood in conjunction with high rotor and cutting speeds and variable shredding bar spreads the shredded material evenly behind the roller giving excellent mulching and shredding quality
• Made from High Quality Steel QST/S with Head Stock Cat. II for Rear mounting
• Patented removable shredding bar system (Shark Fin)
• Market-leader in foreign object thrown test results
• Hydraulic parallelogram side shift ( 155 cm, see diagram and table below )
• Overall width up to 355 cm ( see diagram and table below )
• Safety-Mechanical-Break-Away System
• Working angle 90° up to 60° down
• Gear box with integrated over-run clutch for 540 r.p.m.
• Belt protection with tension measuring slot
• Heavy duty P.T.O.
• Hydraulic transport safety lock at an angle of 90° with shutoff tap, Stand
• ( 2 double acting hydraulic connectors needed, at least one with floating position )
• High tempered M-Hammer flails with self-sharpening cutting edge to ensure a clean cut and maximum shredding using less power
• Well balanced Rotor with specially formed flail lugs to protect against damages from obstacles and internal bearings protecting against dirt, wear and tear
• Self-cleaning Roller with internal bearings and well-rounded edges to preserve the soil and turf and to carry the mulcher, adjustable to different heights; Wearing skids
• Optimised distance between the outer rotor circle and the roller guarantees perfect contour following and an even quality of cut
• Carbide wearing skids

Options

• Wearing plate inside the hood ( made from 3 mm special hardened material )
• Warning signs and lights ( not mounted ) Left or Right Build ( please state )
• Different flails and rotor systems ( 3 Y – Flails, M – Shackle Flails )
