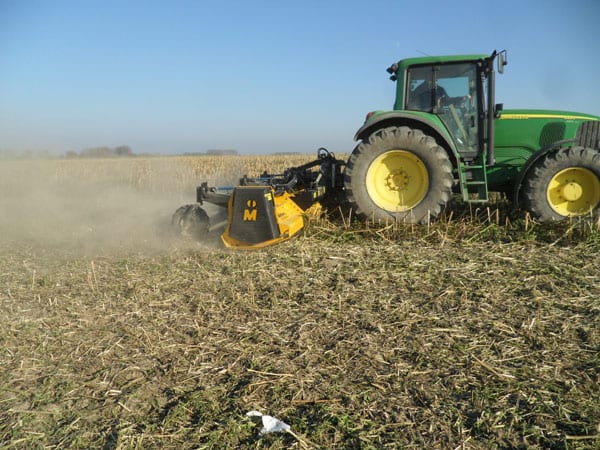

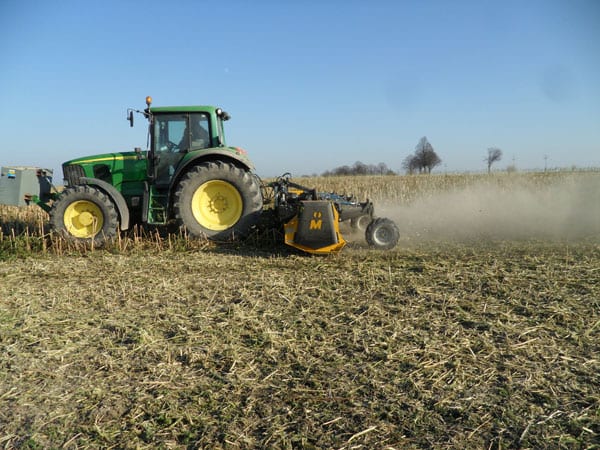

Muthing MU-M 600 Vario

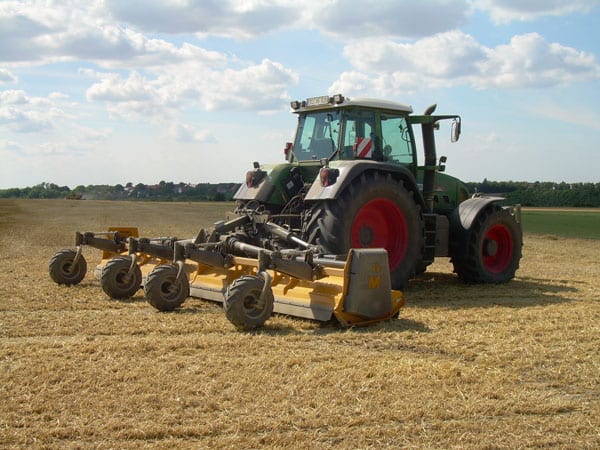

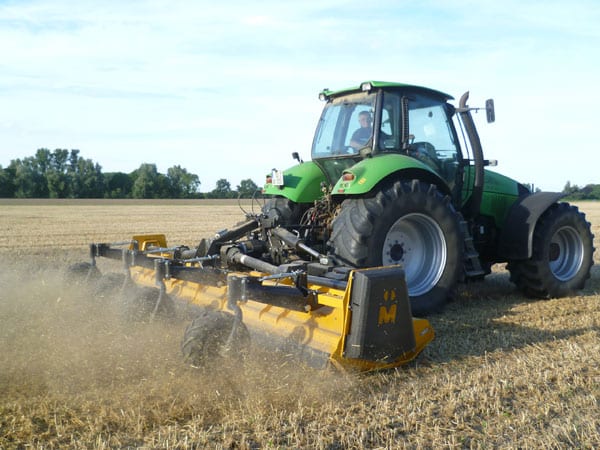

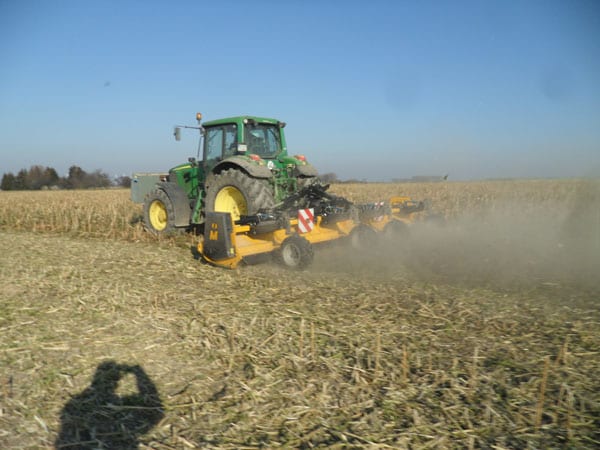

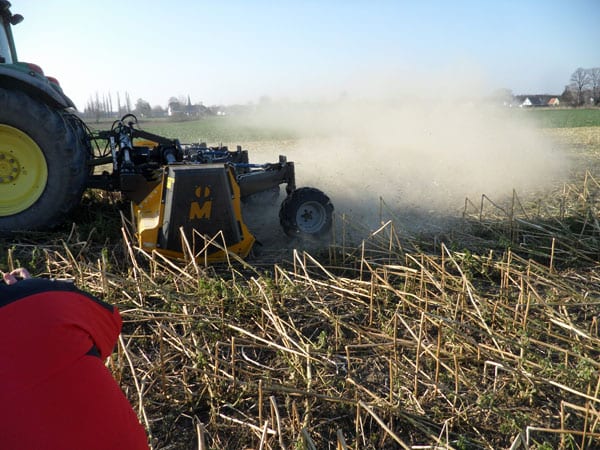

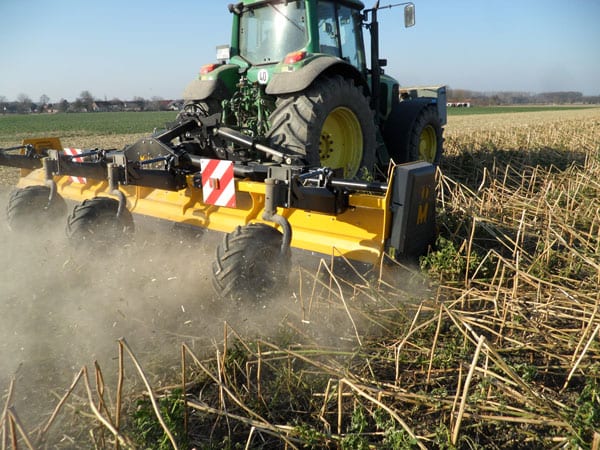

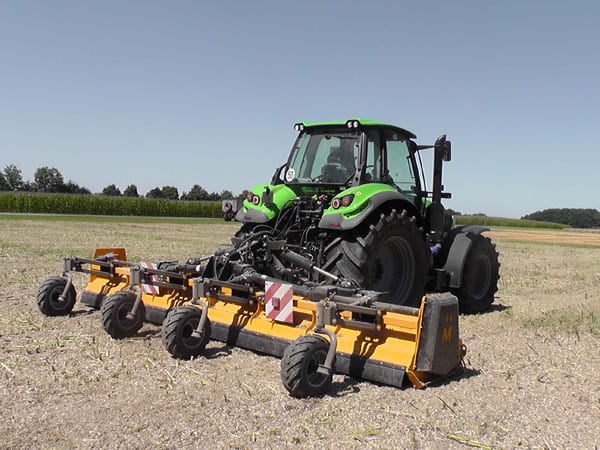

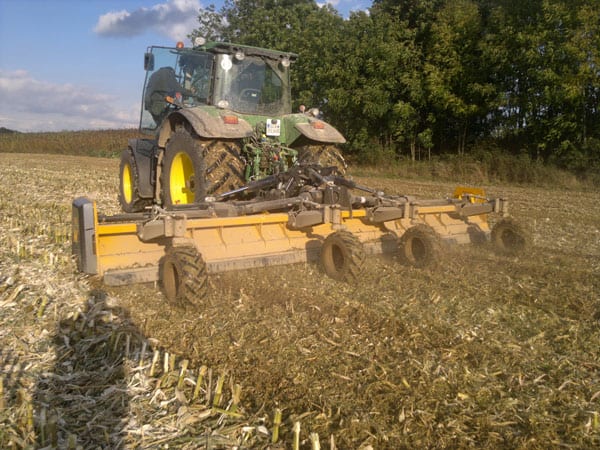

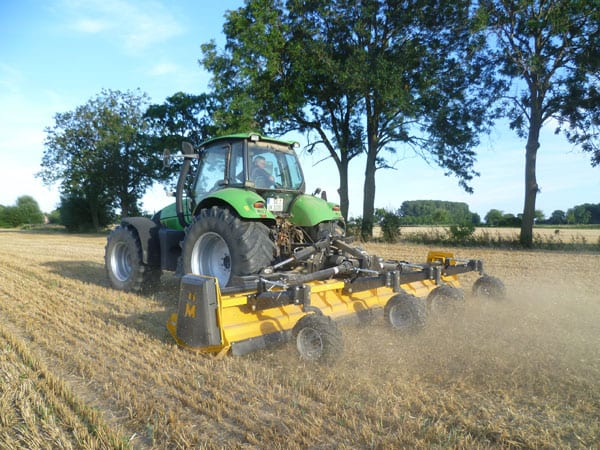

For a gallery of images, click on the image below
Rear-mounted hydraulic folding for tractors up to 250 HP
Standard Equipment
- Purposely designed hood in conjunction with high rotor and cutting speeds and the removable shredding bar spreads the shredded material evenly behind the mower giving an excellent Mulching and Shredding Quality
- Manufactured from High Quality QSt/E Steel, hydraulic folding with three point linkage Cat II +III.
- Patented removable shredding bar system (Shark Fin)
- Market-leader in foreign object thrown test results
- Gearbox with integrated over run for 1 000 rpm.
- Automatic belt tension.
- Hood Wear plates.
- Hydraulic transport lock at an angle of 90 degrees
- High tempered “M” Hammer Flails.
- Smooth running rotor with specially shaped, spirally arranged blade holders
- Patented removable shredding bar – System: “Shark fin”
- Carbide wear skids, replaceable.
- High tempered one way spring steel protection flaps in front of the mower hood.
- Hydraulic connection requirements: 2 single acting
- Heavy Duty PTO shaft with cap bottom lubrication
- Set of warning signs / lighting LED mounted
- Adjustable Vario Cutting Bar for adjusting the shredding rate
Options
- 4 wheels 23×10.50-12, 360° rotating with mechanical height adjustment.
- Second patented removable shredding bar – System: “Shark fin”
- Hydraulically driven central mower. Hydraulic Requirements: 1 Single Acting with free return and 1 x free return for the drain line directly into the oil tank (Delivery time on request) Working Hour Meter
