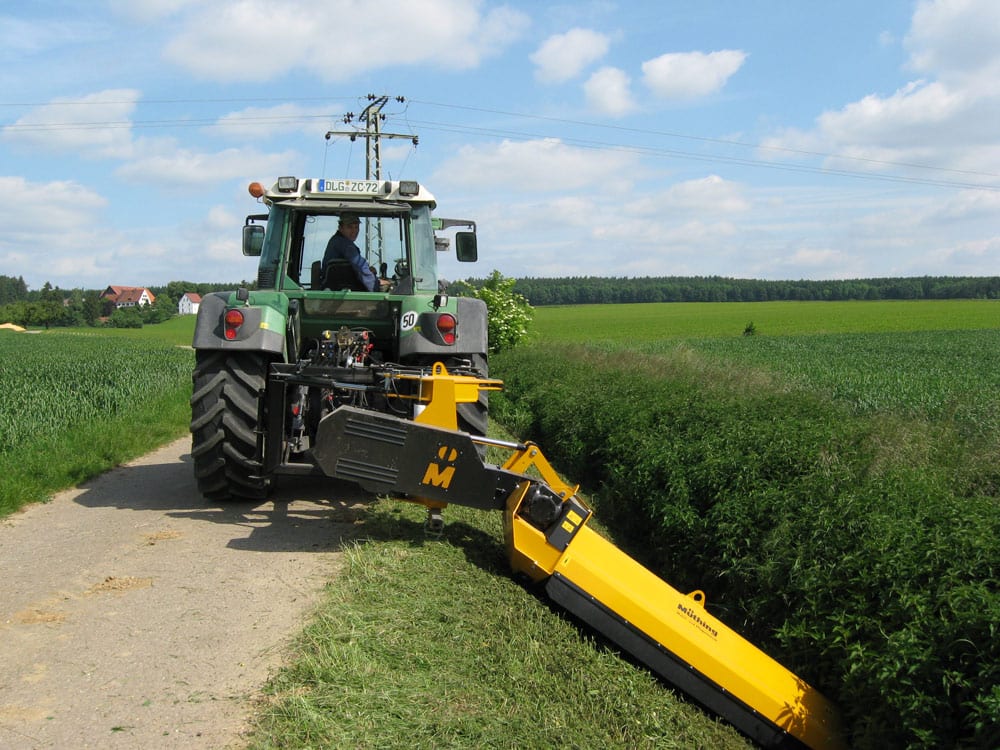

Muthing MU-M/S 160HP

Muthing MU-M/S 160HP

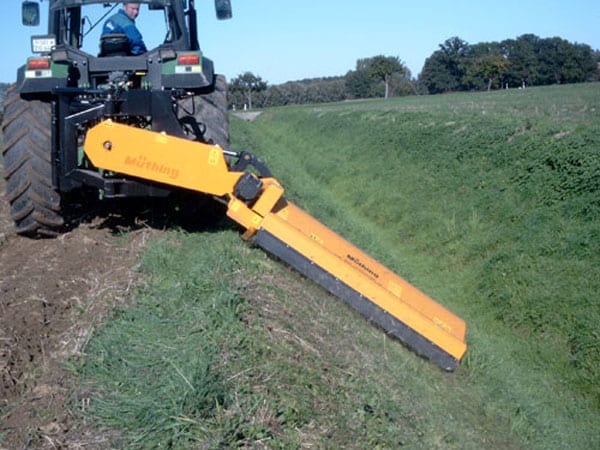

For a gallery of images, click on the image below

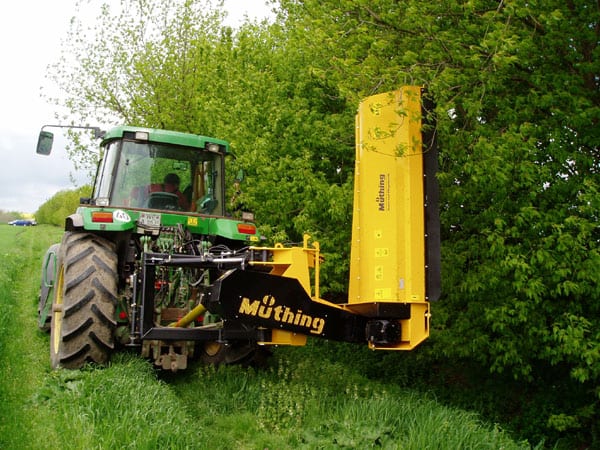

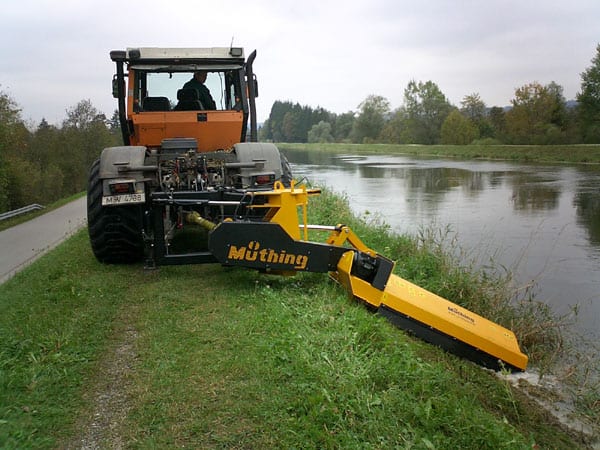

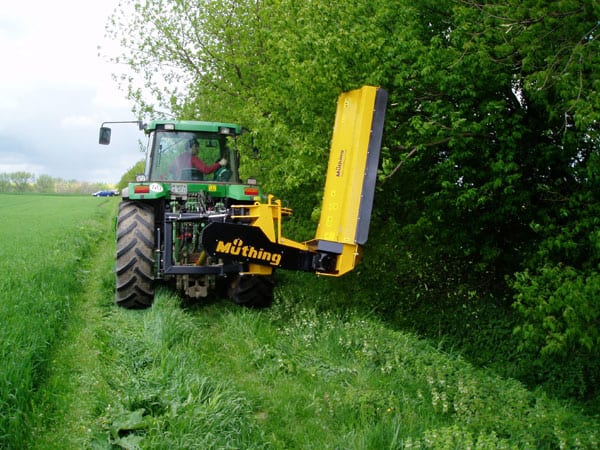

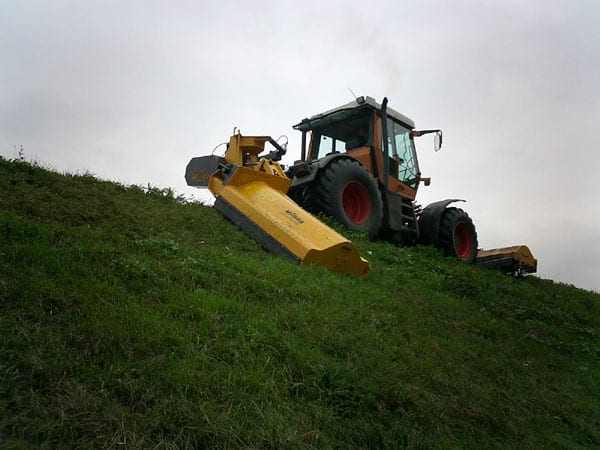

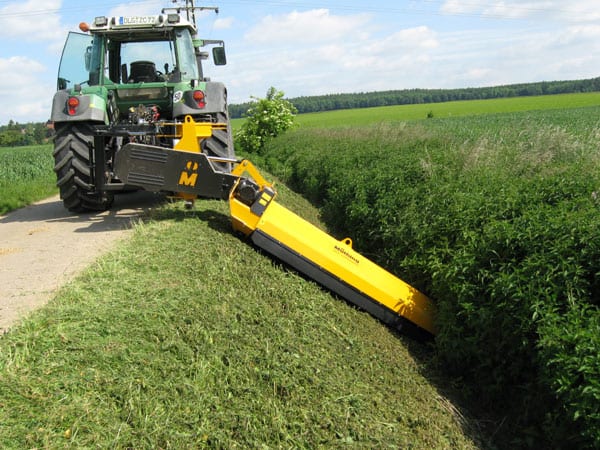

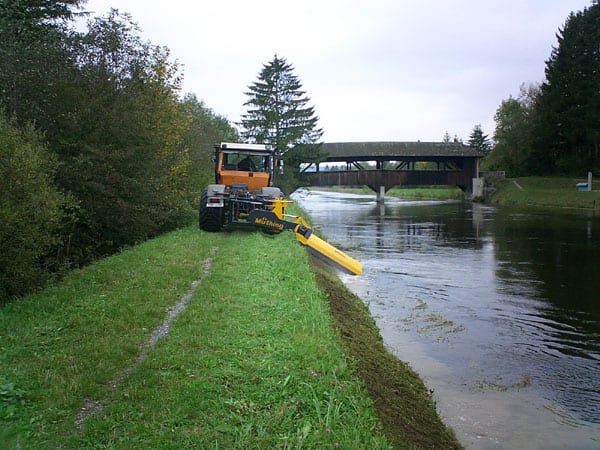

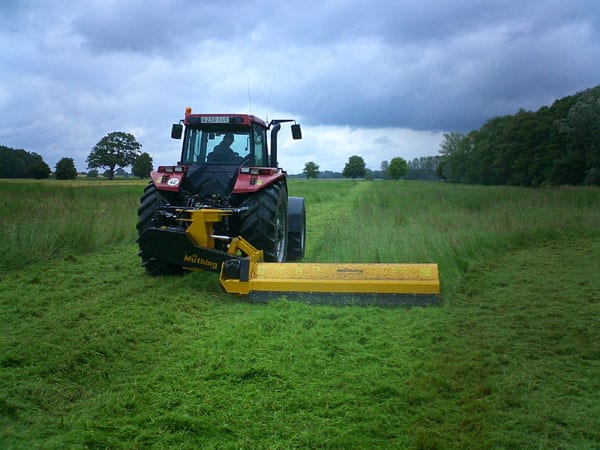

Verge mowers for rear and front-mounting for tractors up to 160HP

Standard Equipment

  • Purposely designed hood in conjunction with high rotor and cutting speeds and removable shredding bar spreads the shredded material evenly behind the roller giving an excellent mulching and shredding quality
  • Made from High Quality Steel QSt/E
  • Rear mounted Head Stock Cat. II + III with hydraulic parallelogram side shift
  • Patented removable shredding bar system (Shark Fin)
  • Market-leader in foreign object thrown test results
  • Side shift 60 cm (Inner edge of Mulching Head in between 100 to 160 cm from the centre of the tractor P.T.O. to the outside)
  • Working angle of Mulching Head 90° up to 60 ° down
  • Hydraulic Safety-Break-Away System and hydraulic transport lock
  • Gear box with integrated over-run-clutch for 1,000 r.p.m.
  • Automatic belt tension tighteners, Belt protection with tension measuring slot
  • High tempered “M”-Hammer flails with self-sharpening cutting edge to ensure clean cut and maximum shredding using less power
  • Well balanced Rotor with specially formed flail lugs to protect against damages from obstacles and internal bearings protecting against dirt, wear and tear
  • Self-cleaning Roller ( Ø 220 mm ) with internal bearings and well-rounded edges to preserve the soil and turf and to carry the mulcher, adjustable to different heights;
  • Wearing skids
  • Swinging arm connection of Head Stock and Mulching Head together with optimised distance between the outer rotor circle and the roller guarantees perfect contour following and an even quality of cut
  • (2 double acting connectors needed, one allowing floating position )
  • Hood Wear Insert (factory mounted)


  • Warning signs and lights ( not mounted )
  • Wearing plate inside the hood ( Delivery time to be asked for )
  • Different flails and rotor systems ( 3-back to back-flails, M – Shackle flails )

Model WW max. Tractor HP Weight No of flails
cm 1,000 r.p.m. kg
MU-M/S 180 180 160 1,140 16
MU-M/S 200 200 160 1,210 16
MU-M/S 220 220 160 1,280 18
MU-M/S 250 250 160 1,380 22
