Sauerburger Condor 7300
For a gallery of images, click on the image below

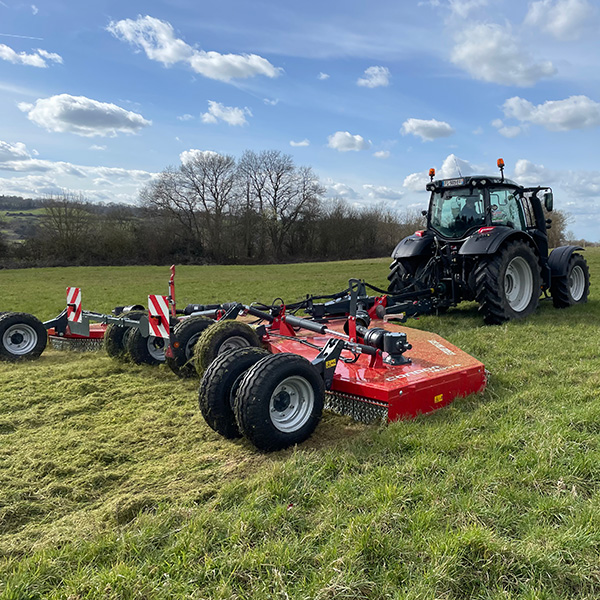

On the SAUERBURGER large area roundabout mower CONDOR, the working height of the machine is adjusted via 3 double hydraulic cylinders. The coupling of the drawbar with the rear wheels enables parallel working height adjustment. In transport position the wings swing up 100° and thus the centre of gravity is shifted to the middle of the machine, which provides more stability when driving on the road. The changeover from transport to working position is hydraulic and can be carried out within a few seconds.
Benefits at a glance:
- Strongly dimensioned gearboxes and drive shafts with overload protection
- clean cut, 3 choices of Blade configurations
- easy to set up
- smooth top surfaces with mulching structure below
- Easy to clean.
- High inlet opening
- Perfect mulching result even at high working speeds
- Very good distribution of the mulch mass over the entire width of the machine
- 1 model Condor 7300
Product Enquiry
Downloads
Brochures
| TECHNICAL DATA | |||
| CONDOR 5000 | CONDOR 6200 | CONDOR 7300 | |
| Item no | 7146K | 7146L | 7146N |
| Attachment / coupling | Trailed version, multiple position drawbar, choice between several traction devices | Trailed version, multiple position drawbar, choice between several traction devices | Trailed version, multiple position drawbar, choice between several traction devices |
| Working width (m) | 5,00 | 6,20 | 7,30 |
| Transportbreite (m) | 2,5 | 2,5 | 2,5 |
| Transport lock | Series | Series+ | Series |
| Number of wheels (series / option) | 4 / 6 / 8 | 6 / 8 | 8 |
| Tyres | BKT 10.0/75-15.3 (10 PR or 18 PR as option) |
BKT 10.0/75-15.3 (10 PR or 18 PR as option) |
BKT 10.0/75-15.3 (10 PR or 18 PR as option) |
| Transfer case performance | 290 PS | 290 PS | 290 PS |
| Power of the rotor gearboxes | 180 PS | 180 PS | 180 PS |
| Quantity of oil transfer case | 3,8 liter | 3,8 liter | 3,8 liter |
| Quantity of oil rotor gearboxes | 3,5 liter | 3,5 liter | 3,5 liter |
| PTO shaft (rpm) | 1.000 | 1.000 | 1.000 |
| overload protection | 2-disc slip clutches | 2-disc slip clutches | 2-disc slip clutches |
| Depth of the mulching deck | 33 cm | 33 cm | 33 cm |
| Hood thickness | 5 mm | 5 mm | 5 mm |
| Side panels | 5 mm | 5 mm | 5 mm |
| Cutting area | 30 – 360 mm | 30 – 360 mm | 30 – 360 mm |
| cutting speed | 90 m/s | 90 m/s | 90 m/s |
| Chain curtain | Double chain curtain, front and back | Double chain curtain, front and back | Double chain curtain, front and back |
| Workspace | +30° / -14° | +30° / -14° | +30° / -14° |
| Weight (approx. kg) | ab 2.550 | ab 3;300 | ab 3.512 |
